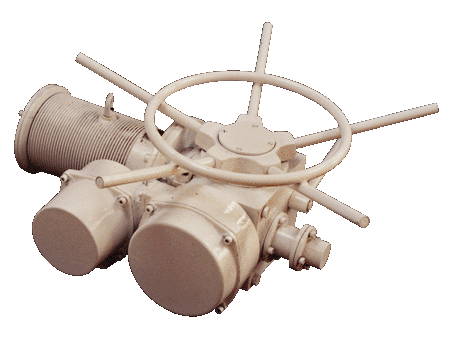

MOA OC - Actuator for nuclear power plants

MOA OC (52 070 - 52 074, 52 079)

Electric rotary multi-revolution actuators for nuclear power plants - Inside containment

Technical data

MOA OC

Type number

52070

52071

52072

52074

52070

52071

52072

52074

52079

Šneková převodovka

Planetová převodovka

IP 67

Tripping force [kN]

20-63

63-160

15-250

250-630

20-63

63-160

15-250

250-630

10-30

Adjusting time [s/90°]

Position-changing velocity

[min-1]

[mm/min]

16-100

40-100

40-120

16-40

25-100

25-70

33-95

9-40

Working stroke

[°]

[ot]

[mm]

2-250

2-240

1,5-38

Supply voltage

1x 230 V, 50 Hz

24 V, 50 Hz

1 x 110 V, 50 Hz

3 x 230 / 400 V, 50 Hz

Control

Two position On-Off

✔

Three position

✔

Continuous

PROFIBUS

Position sensing

Resistance transmitter (R)

Absolute

Current transmitter (I)

Position interrupt

Torque-initated interrupt

✔

Manual actuation

✔

Explosion-proof design

✔

Type of enclosure

Weight - depending on design (Al/cast iron) and on motor [kg]

IP 55

IP 67

45-55

75-94

94-108

152-212

30-34

93-111

19,4-21,6

Usage

The electric rotary multi-revolution actuators MODACT® MOA OC are designed for remote control of special valves installed in hermetic boxes or under the containment of nuclear power plants with reactors VVER or RBMK. The actuators MODACT® MOA OC are intended for safety circuits as well as for normal use.
