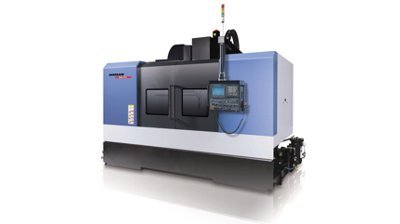

| DOOSAN DNM 750 L | |
|---|---|
| Spindle taper | ISO 40 |
| Spindle speed - rev / min | 8000 (12000) |
| Spindle motor power - kW | 18,5 (15) |
| Travel in X-axis - mm | 2160 |
| Travel in Y-axis - mm | 762 |
| Travel in Z-axis - mm | 650 |
| Workbench dimensions - mm | 2160 X 760 |
| Number of tools | 30 |

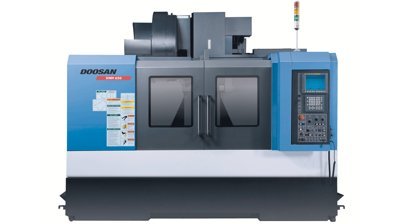

| DOOSAN DNM 650 | |
|---|---|
| Spindle taper | ISO 40 |
| Spindle speed - rev / min | 8000 (12000) |
| Spindle motor power - kW | 18,5 (15) |
| Travel in X-axis - mm | 1270 |
| Travel in Y-axis - mm | 670 |
| Travel in Z-axis - mm | 625 |
| Workbench dimensions - mm | 1300 x 670 |
| Number of tools | 30 (40) |

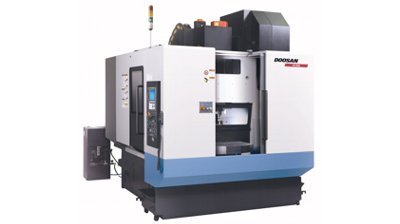

| DOOSAN VC 500 | |
|---|---|
| Spindle taper | ISO 40 |
| Spindle speed - rev / min | 10000 ( 80000) |
| Spindle motor power - kW | 11 (15) |
| Travel in X-axis - mm | 760 |
| Travel in Y-axis - mm | 510 |
| Travel in Z-axis - mm | 570 |
| Workbench dimensions - mm | 860 X 560 |
| Number of tools | 34 |

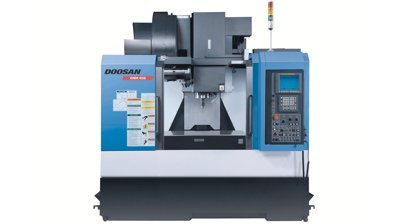

| DOOSAN DNM 400 | |
|---|---|
| Spindle taper | ISO 40 |
| Spindle speed - rev / min | 8000 (12000) |
| Spindle motor power - kW | 15 |
| Travel in X-axis - mm | 762 |
| Travel in Y-axis - mm | 435 |
| Travel in Z-axis - mm | 510 |
| Workbench dimensions - mm | 920 x 435 |
| Number of tools | 30 (40) |
Control system - HEIDENHAIN ITNC 530
Machining of box-type an flange-type parts

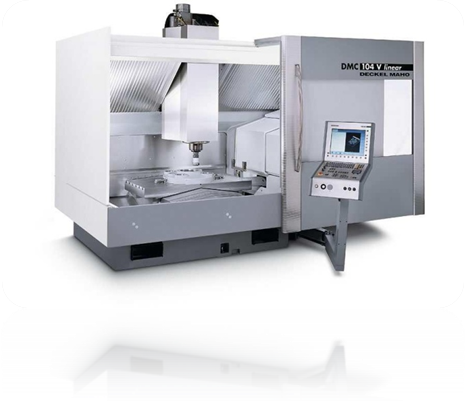

| DMC 104 V LINEAR | |
|---|---|
| Spindle taper | SK 40 |
| Spindle speed - rev / min | 12000 |
| Spindle motor power - kW | 13 |
| Travel in X-axis - mm | 1040 mm |
| Travel in Y-axis - mm | 600 mm |
| Travel in Z-axis - mm | 500 mm |
| Workbench dimensions - mm | 1200 x 600 mm |
| Number of tools | 30 |
Control system - SINUMERIK 810 D
Machining of box-type an flange-type parts

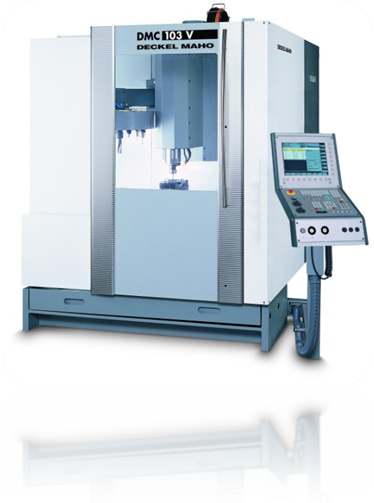

| DMC 103 V | |
|---|---|
| Spindle taper | SK 40 |
| Spindle speed - rev / min | 12000 |
| Spindle motor power - kW | 13 |
| Travel in X-axis - mm | 1000 mm |
| Travel in Y-axis - mm | 600 mm |
| Travel in Z-axis - mm | 600 mm |
| Workbench dimensions - mm | 1200 x 600 mm |
| Number of tools | 30 |
Control system - HEIDENHAIN iTNC 530
Machining of box-type an flange-type parts

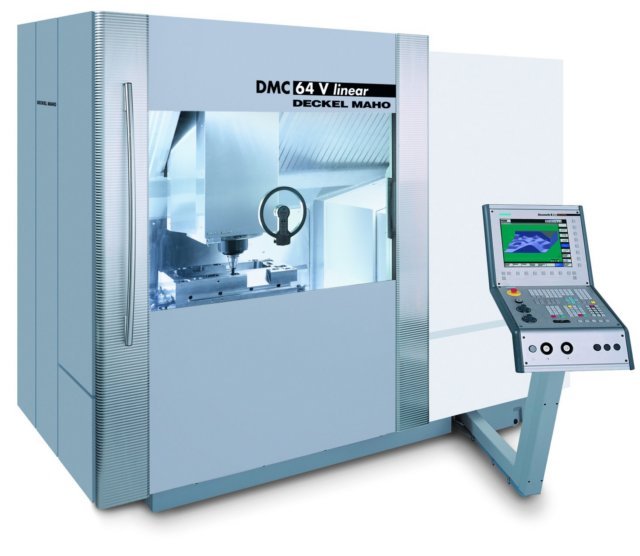

| DMC 64 V linear | |
|---|---|
| Number of tools | 30 |
| Spindle taper | ISO 40 |
| Spindle speed - rev / min | 18000 |
| Spindle motor power - kW | 25 |
| Travel in X-axis - mm | 640 |
| Travel in Y-axis - mm | 600 |
| Travel in Z-axis - mm | 850 |
| Workbench dimensions - mm | 850x600 |
| Maximum workbench load | 600 kg |
