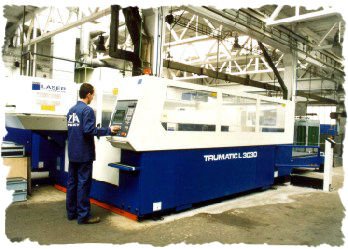

Laser cutting machines TRUMATIC L 3030 and TruLaser 3530

Material conditions:

  • maximum dimensions 1 500 x 3 000 mm
  • maximum thickness 20 mm (with standard steel quality material)
  • maximum thickness 15 mm (with stainless steel quality material)
  • maximum thickness 10 mm for aluminium - base alloy workability of foil laminated sheet
  • maximum weight of component 720 kg

The machine is used for cutting of components with high accuracy requirements:

  • smallest programmable trajectory 0.01 mm
  • positioned deviation "Pa" ±0.1 mm
  • positioned scatter width "Ps" ±0.03 mm
  • component marking for identification

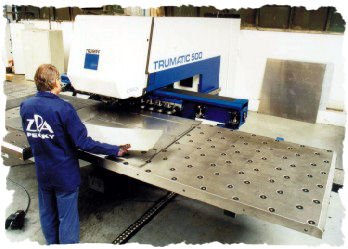

CNC cutting press machine TRUMATIC 500

Material conditions:

  • maximum dimensions 1 250 x 2 500 mm
  • maximum thickness 3.0 mm (6.0 mm - only for large series, tools must be added)
  • The machine is used for cutting of component with a lot of holes by punching with accuracy requirement max: ±0.1 mm.

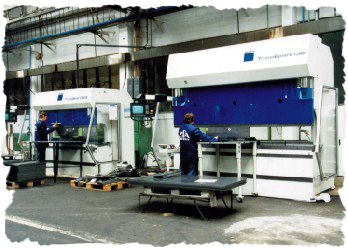

CNC bending press TRUMPF

TRUMABEND V 130

  • press force: 1 300 kN
  • lift: 365 mm
  • bend length: 3 060 mm
  • maximum thickness of the bending component: 6.0 mm

TRUMABEND V 85 s

  • press force: 850 kN
  • lift: 215 mm
  • bend length: 2 050 mm
  • maximum thickness of the bending component: 4.0 mm

TRUMABEND V 50

  • press force: 500 kN
  • lift: 215 mm
  • bend length: 1275 mm
  • maximum thickness of the bending component: 3.0 m

WaterJet Cutting PTV WaterJet

  • Working area 3000x2000mm
  • Best equipped machine from PTV
  • Possibility of cutting under an angle of up to 60 degrees
  • Cutting thickness of material up to 500 mm (iron), Soft materials and more
  • 3D waterjet cutting video here:
